Fittings and Tubing: Gauges

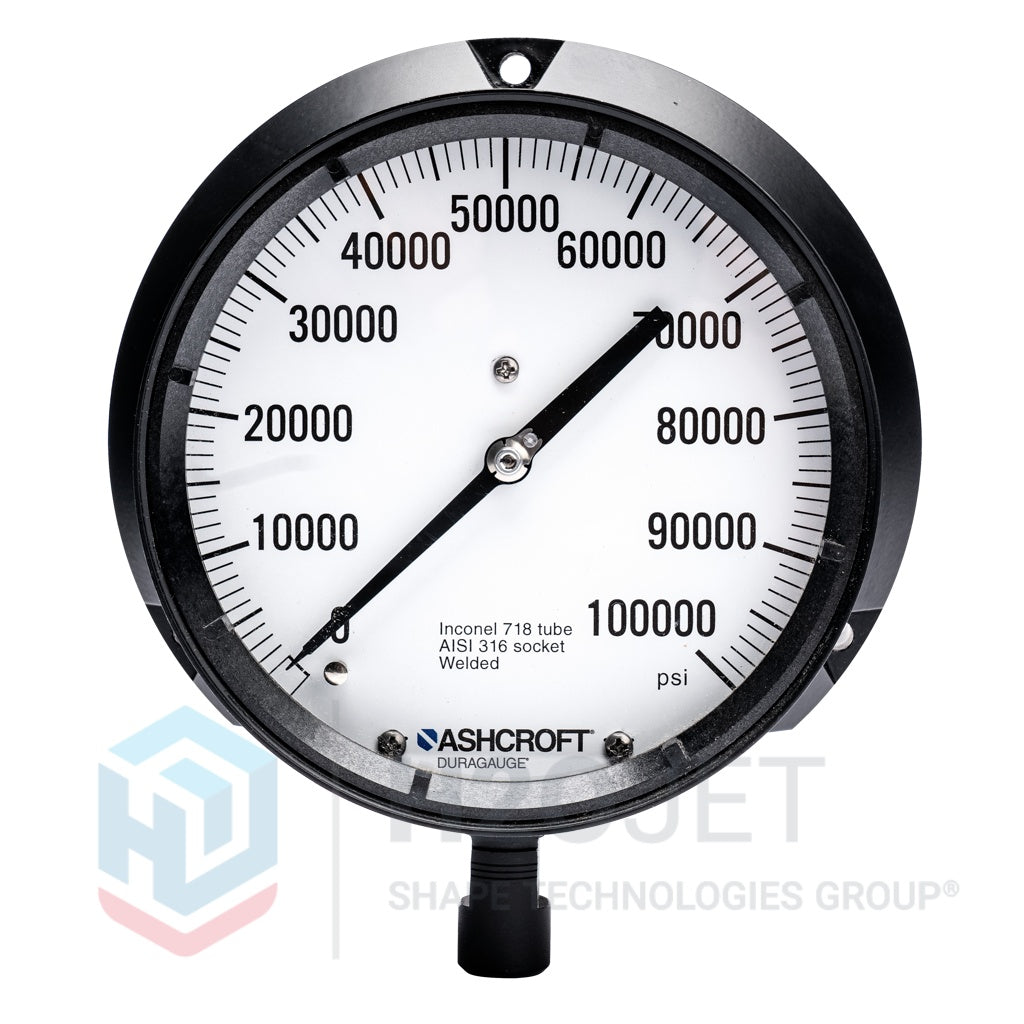

100k PSI Water Gauge, 6-in

100k PSI Water Gauge, 6-in

SKU:490126-1

Pressure Gauge, 0-100ksi; F fitting in bottom for ¼" tubing gland and collar (not included); 6-in Aluminum face with mounting holes.

Large, easy-to-read dial.

Useful for diagnosing issues and monitoring pump condition.  Helps ensure consistent cut performance by indicating operating pressure.

New!  Consider adding a 0.012" Dampener/Snubber to protect and extend the life of your gauge.  It is a coned insert with a small, 0.012" hole.  It protects the gauge by restricting water flow during sudden pressure spikes and shocks in the high-pressure lines.  It's item #490013-4.

Here's how to add it to your gauge:  If SUPPLY LINE is

    3/8" tubing: Use 490017-1 Adapter 94k 3/8"F to 1/4"M plus the snubber #490013-4 (which replaces the coned insert in 490017-1).

    1/4" tubing:  We don't have a 1/4" adapter to hold the snubber so recommend adding an adapter to step up to 3/8" tubing, then use the 3/8" adapter, 490017-1, as mentioned above.

490126-1 Replaces:
